首页 / 产品中心 / 庭院灯 / YZTL870 【10W~30W】

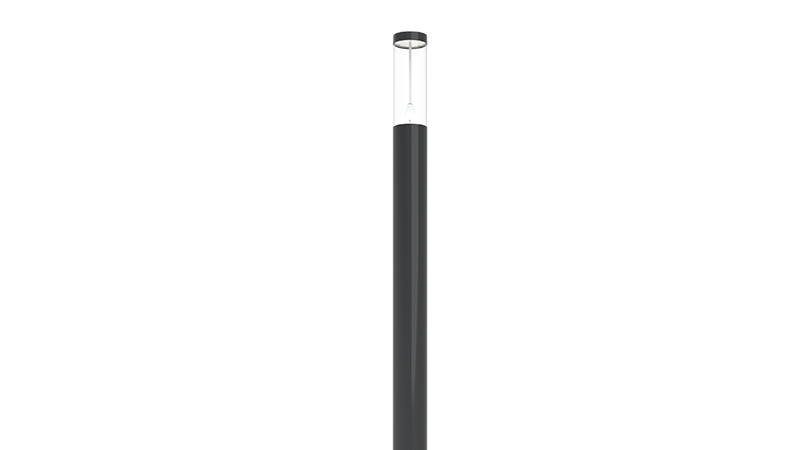

YZTL870 【10W~30W】

灯壳采用铝材质;
选用高透光率光学级PC罩;
表面静电喷涂处理,防腐性能好;
可选配装饰气泡柱;
适用于公园、小区、广场、步行街等场所。
状态:

870-01

技术参数

型号 YZTL870
功率 10W~30W
配光角度 TYPE V
色温 3000K/4000K/5000K/5700K
光效 70-90LM/W
显色指数 ≥70
电压 100-240V
功率因数 0.9
灯体 铝合金
透光类型 PC罩
工作温度 -30℃~+50℃
防护等级 IP66
防碰撞等级 IK08
可选配件 /
灯珠寿命 >60000小时


结构尺寸

870-02


配光曲线

870-03
